SCAR PLANT Drive Kit for 1 lb Combat Robots

(0 review)


Drivetrain Foundation for 1 lb Combat Robots


Meet the SCAR PLANT Drive Kit — the drivetrain foundation for serious 1 lb (Antweight) combat robots. Designed for builders who demand both speed and control, this kit delivers battle-proven performance in a compact, weight-efficient package.

Now featuring the High Temp Hardened Shaft (HTHS) 1400 RPM N20 motors, the SCAR PLANT Drive Kit provides reliable torque, excellent traction, and durability under repeated combat abuse.

Included is the Malenki HV (High Voltage), a compact triple brushed ESC and receiver combo, designed specifically for combat robotics. Using the AFHDS2A radio protocol, it combines drive control, weapon control, and radio reception into a single lightweight board, making it an excellent choice for 1 lb and smaller robots.

AFHDS__  ≠ AFHDS2A

(the "2A" is important, please make sure that your radio supports the AFHDS2A protocol)

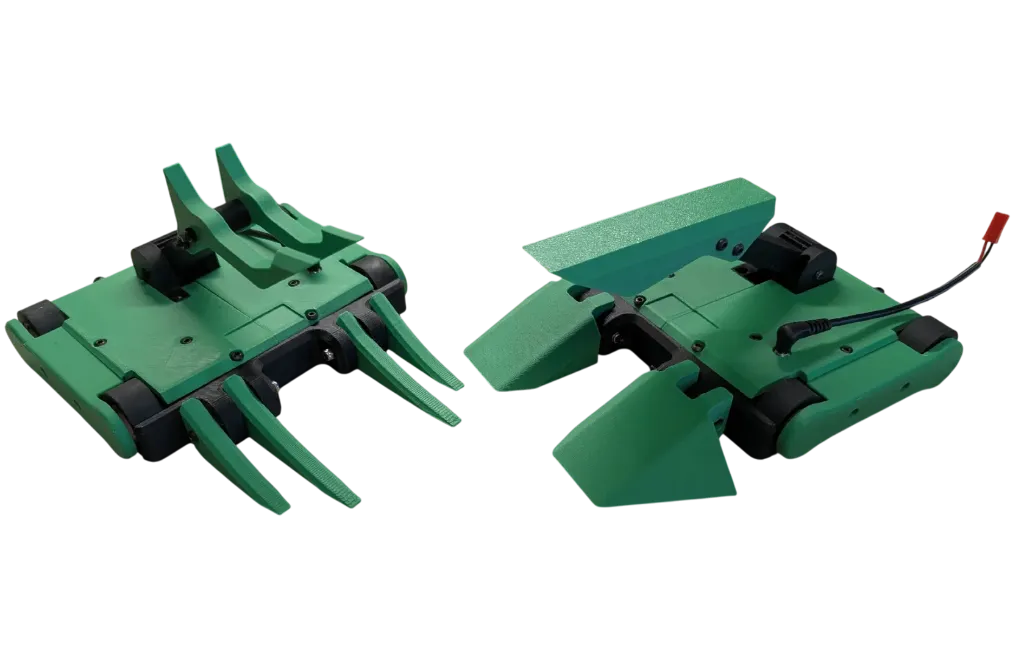

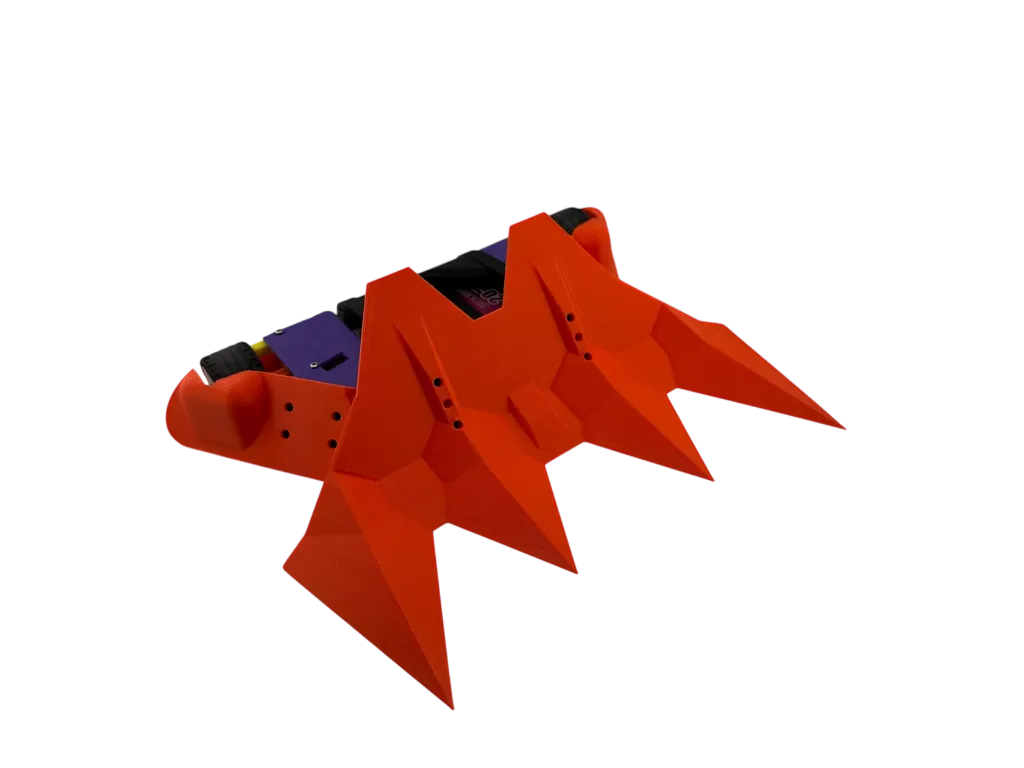

Whether you’re upgrading an existing robot or starting a new build, this system offers a proven drivetrain architecture with modular compatibility across popular SCAR PLANT chassis designs.


$ 109.00 $ 109.00
( $ 0.00/Units)
Contact Us
 See Terms and Conditions

What SCAR PLANT Means

  • SCAR — Southern California Attack Robotics

  • PLANT — PLA / Plastic Ant


    • PLA is the most common 3D-printing material

    • Ant refers to the 1 lb Antweight combat robot class, primarily used in North America


Engineered for Competition

The SCAR PLANT Drive Kit is built around:

  • High-performance Turnabot gearmotors

  • Readily available 3D-printable chassis designs

  • Competition-grade, high-grip tires

Together, these components form a drivetrain capable of competing at every level of 1 lb combat robotics.

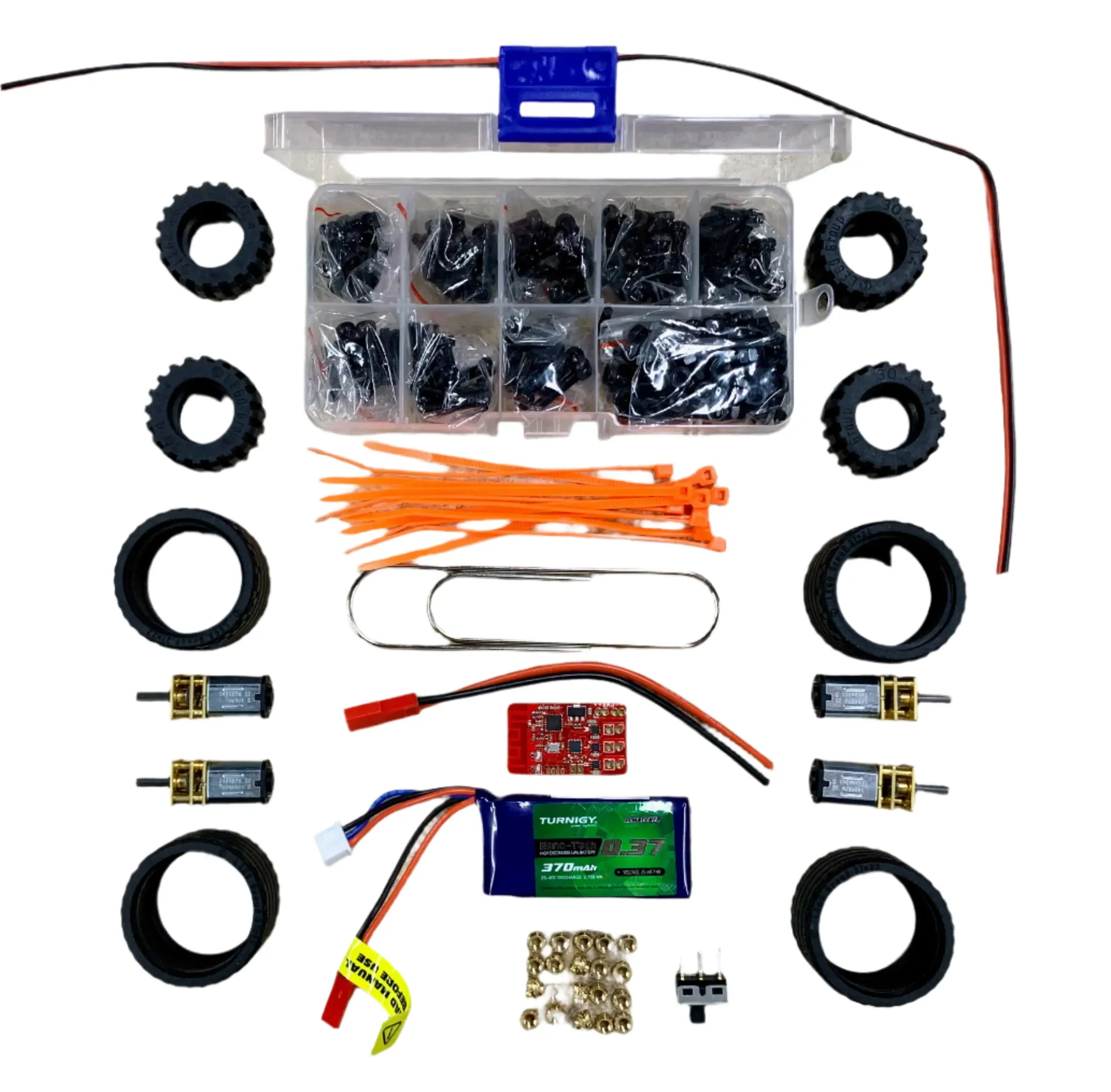

Kit Contents

Qty

Item

4

Turnabot N20 1400 RPM High Temp Hardened Shaft motors

1

Malenki HV ESC

1

2S 300 mAh LiPo battery

4

30.4 mm × 14 mm high-grip tires

4

37 mm × 22 mm high-grip tires

1

1 ft 22-ga wire (red & black)

1

Micro SPDT switch

1

Male JST pigtail on 18-ga wire

10

3 mm zip ties

20

M3 × 4 mm × 5 mm heat inserts

1

Giant paperclip

1

M3 socket head cap screw hardware kit (4 mm–20 mm)
