Malenki Nano Integrated: a Triple Brushed ESC + Receiver Combo

(0 review)

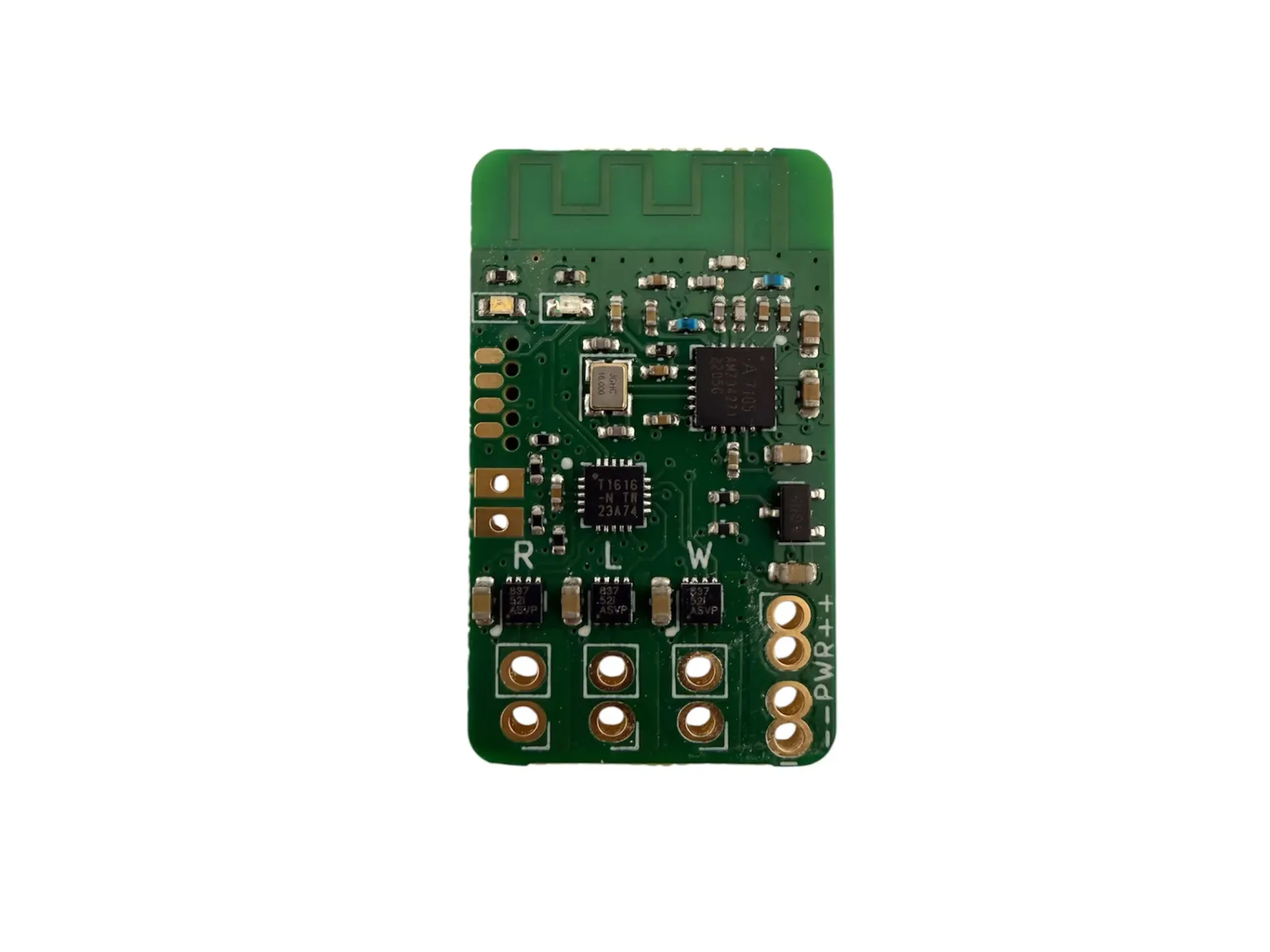

The Malenki Nano Integrated  is a compact triple brushed ESC and receiver combo designed specifically for combat robotics. Using the AFHDS2A radio protocol, it combines drive control, weapon control, and radio reception into a single lightweight board, making it an excellent choice for 1 lb and smaller robots.


AFHDS__  ≠ AFHDS2A

(the "2A" is important, please make sure that your radio supports the AFHDS2A protocol)

Specs:

Weight: 2.4 g

Dimensions: 19 mm x 32 mm


$ 28.00 $ 28.00
( $ 0.00/Units)
Contact Us
 See Terms and Conditions
Power and PerformanceRadio Protocol CompatibilityCompatible Transmitters (Radios)Malenki Nano - Specific Design FeaturesOutput ChannelsConfiguration Options100% Steering Mix ModeSupport NotesDocuments and Tools

Power and Performance

The Malenki Nano includes three brushed motor drivers—left drive, right drive, and weapon—each officially rated at 1.8 amps per channel. Real-world testing shows that over-current protection typically activates around 2.2 amps, providing a margin of protection during aggressive driving and weapon use.

The Malenki is rated for 1S–2S LiPo batteries. While some onboard components are rated up to 12.0 V, a fully charged 3S LiPo reaches 12.6 V, which exceeds the official specification. Many users operate Malenkis successfully on 3S; however, this is outside the rated limits. For higher-voltage builds, the Malenki-HV is designed for 2S–4S operation.


Radio Protocol Compatibility

AFHDS ≠ AFHDS2A

The “2A” designation is critical. Please ensure your transmitter supports AFHDS2A before use.

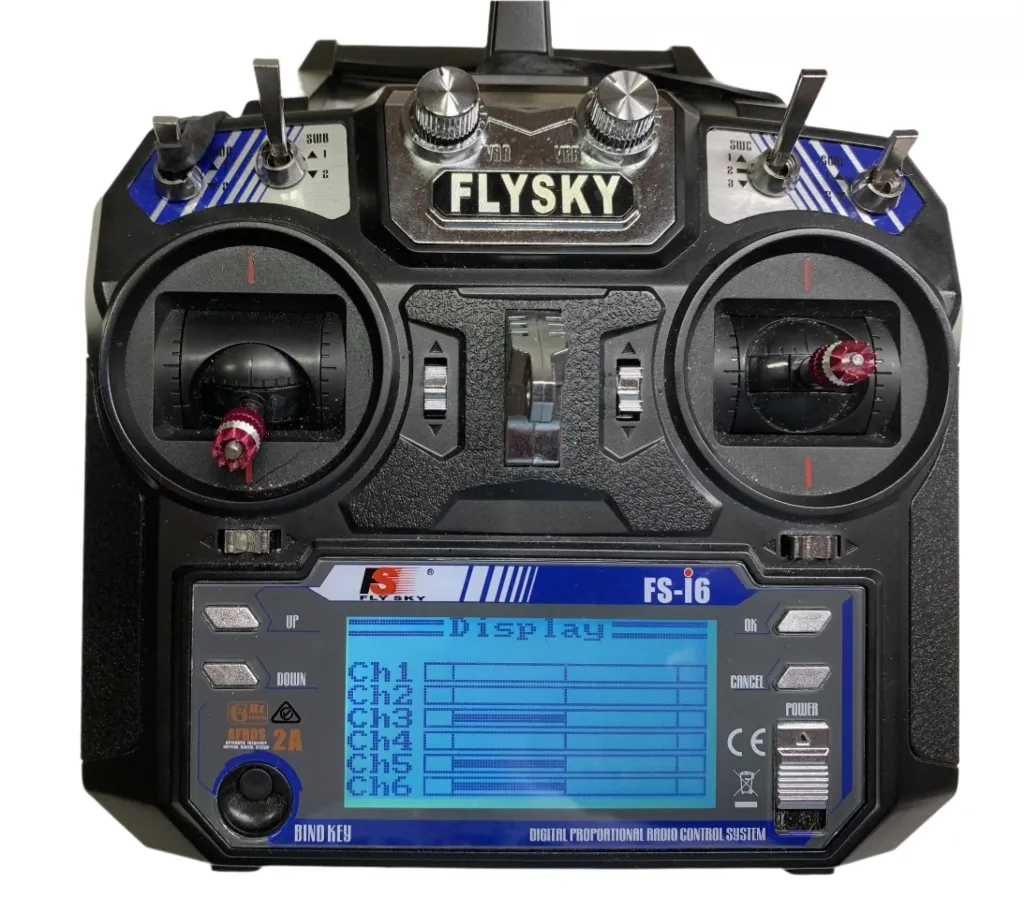

Compatible Transmitters (Radios)

  • Many FlySky and Turnigy radios with AFHDS2A support

  • Most OpenTX-based transmitters

  • Works even with radios that cannot mix steering, thanks to internal configuration options


Malenki Nano - Specific Design Features

  • Integrated micro-crystal radio module for a thinner profile, reduced failure risk, and 0.2 g weight savings

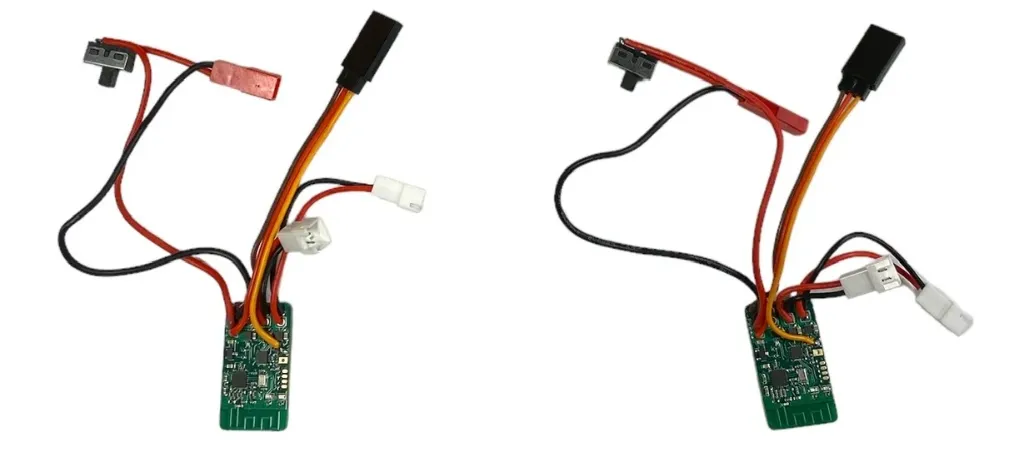

  • Power distribution solder rings for cleaner, simpler wiring

  • Enlarged solder pads to support high-strand-count wire

  • PWM pads (Pulse Width Modulation) on both sides of the board for flexible layouts

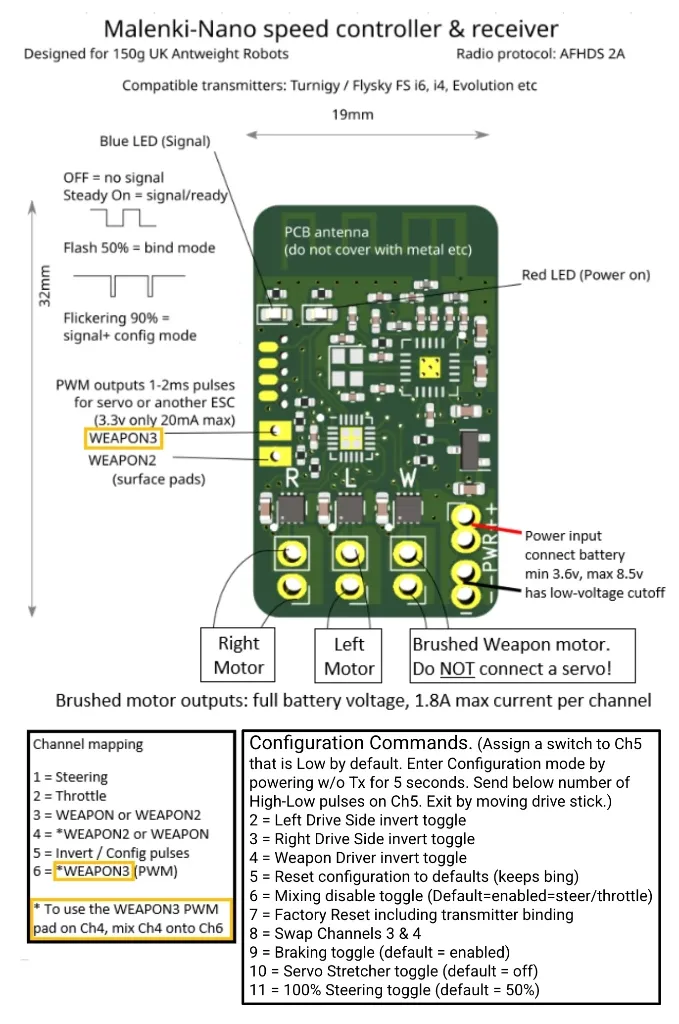

Output Channels

  • 3 brushed ESC outputs (Triple ESC / TESC)

  • 2 PWM outputs, configurable for servos or brushless ESCs


Configuration Options

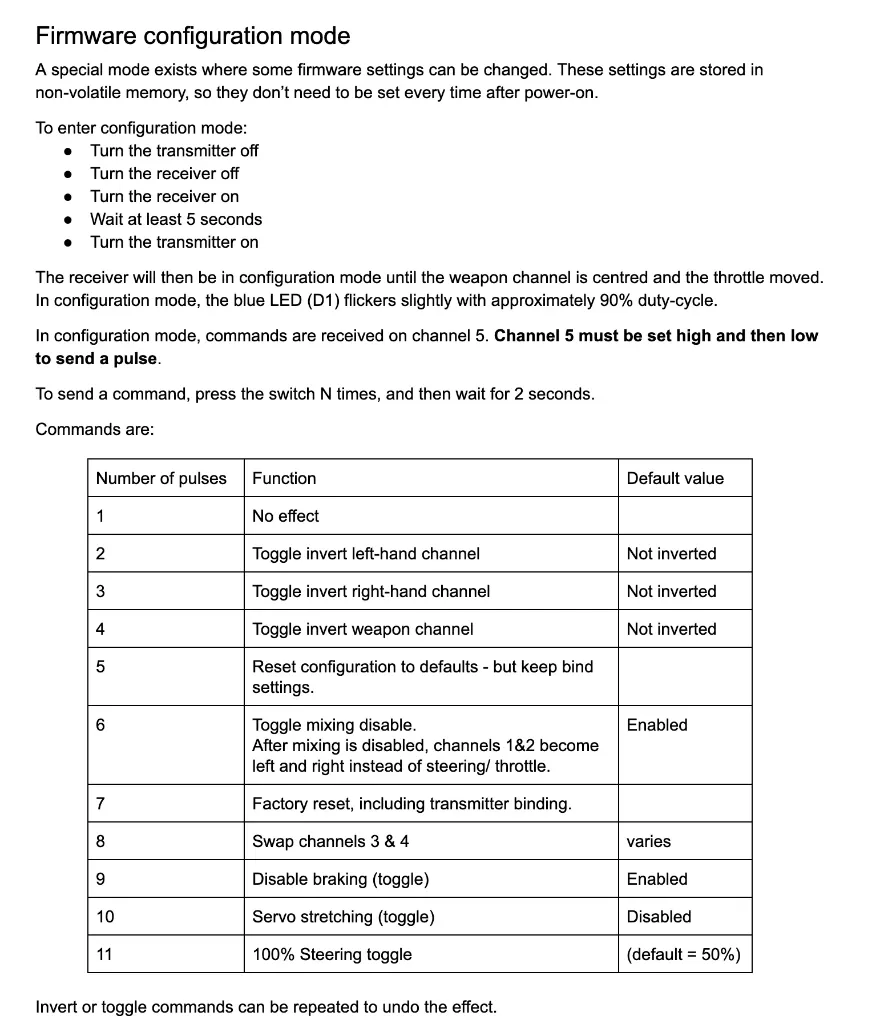

Configuration mode is entered by powering the Malenki 5 seconds before the radio, then sending Hi-Low pulses on Channel 5. The blue light will flicker. Configuration mode lets you change the Malenki’s internal settings. These settings are saved even when the bot is turned off.

Available options include:

  • Reverse left or right drive motors

  • Disable mixing

  • Disable braking

  • Enable servo stretching (use with caution)


100% Steering Mix Mode

The Malenki Nano supports an internal 100% steering mix, rather than the default 50%. This is ideal for users whose transmitters cannot increase steering mix internally. Steering sensitivity can be reduced using dual rates or endpoint adjustments on the transmitter (radio) if needed.


Support Notes

If you need assistance troubleshooting your Malenki, please send:

  • Clear photos of both sides of the board

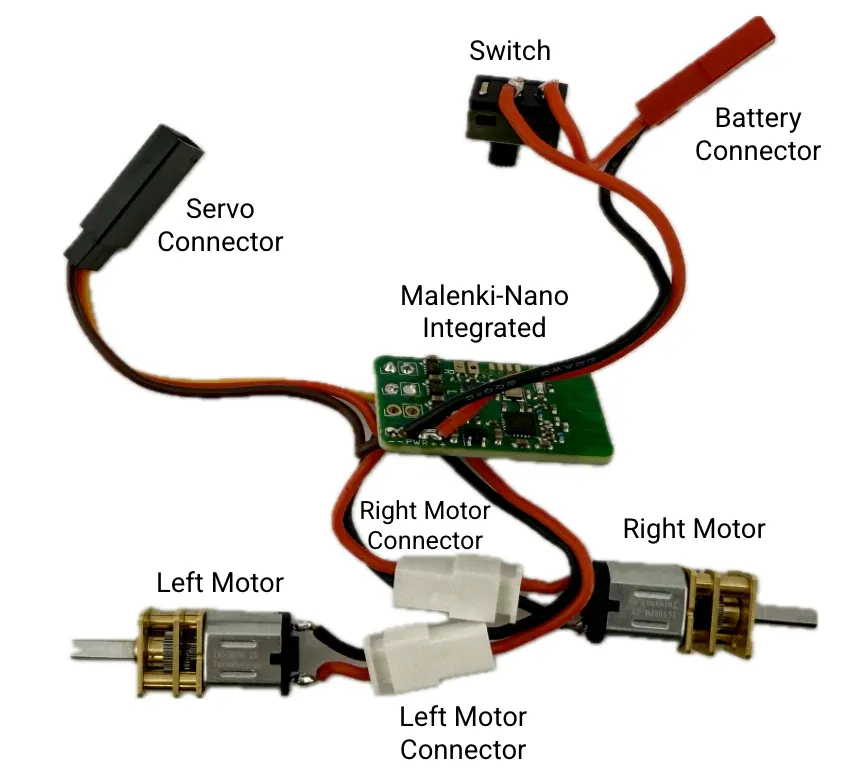

  • A photo of the entire wiring harness

We will do our best to help you get your robot running reliably.



Documents and Tools

Malenki User Doc

Malenki Steering Mix

CAD Models of Turnabot Parts

Full Malenki Radio Set Up Video
