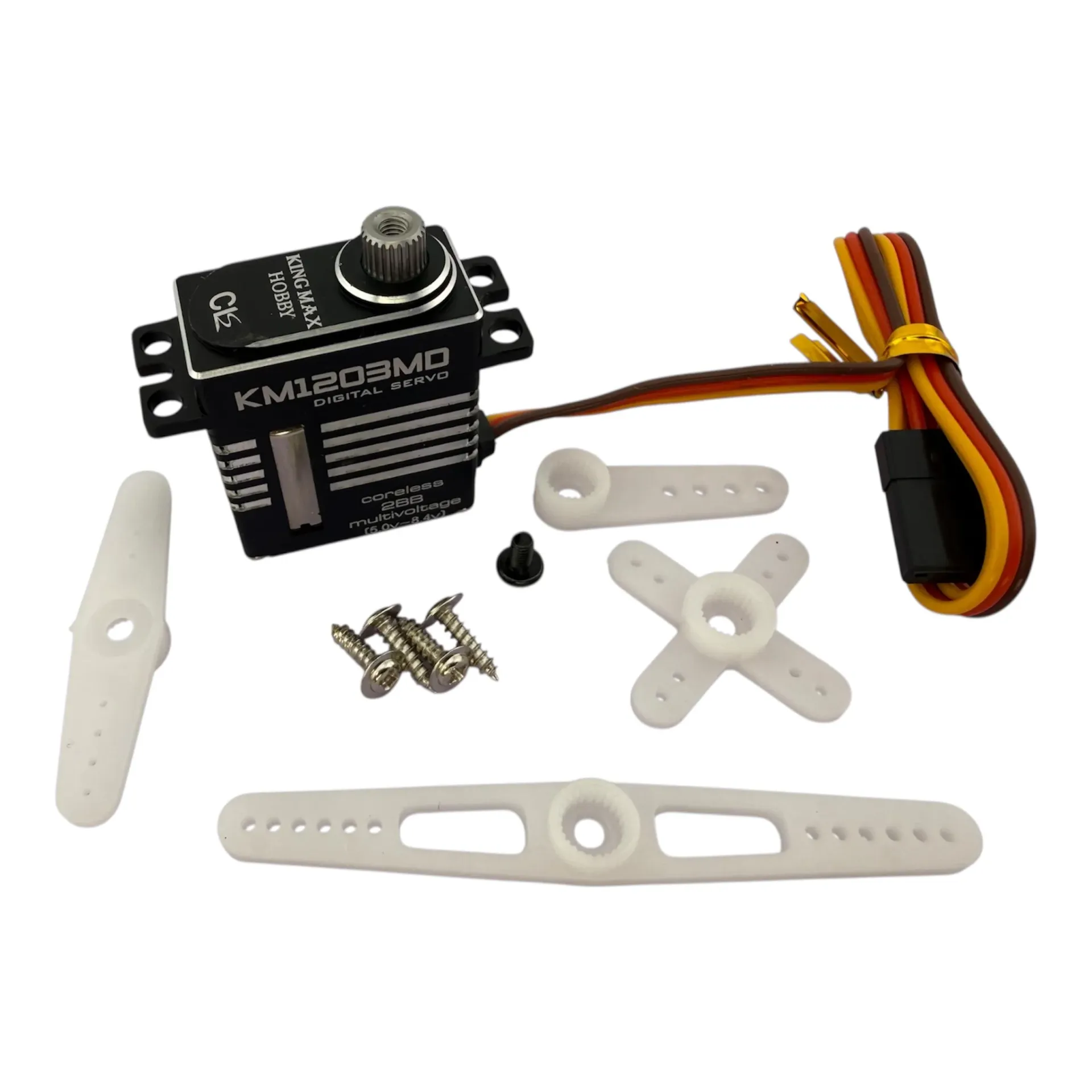

KingMax KM1203MD Servo

(0 review)

The KM1203MD is a high-performance micro servo designed for demanding applications. It delivers fast response and an exceptionally high 10.5 kg·cm of torque for its size class.



Speed

Torque

8.4 volts

0.06 sec / 60°

10.5 kg.cm (145.82 oz.in)

7.4 volts

0.08 sec / 60°

9.5 kg.cm (131.95 oz.in)

6.0 volts

0.10 sec / 60°

7.4 kg.cm (102.78 oz.in)

5.0 volts

0.12 sec / 60°

6.0 kg.cm (83.32 oz.in)


Features:

  • Programmable high performance metal gears (copper+titanium) mini digital servo
  • High quality coreless motor
  • Full CNC aluminum hulls and structure
  • Dual ball bearings
  • Direct Drive Potentiometer
  • Connector Wire Length: JR320 mm (12.48 in)


Specs:

Weight: 20.3 g (0.72oz)

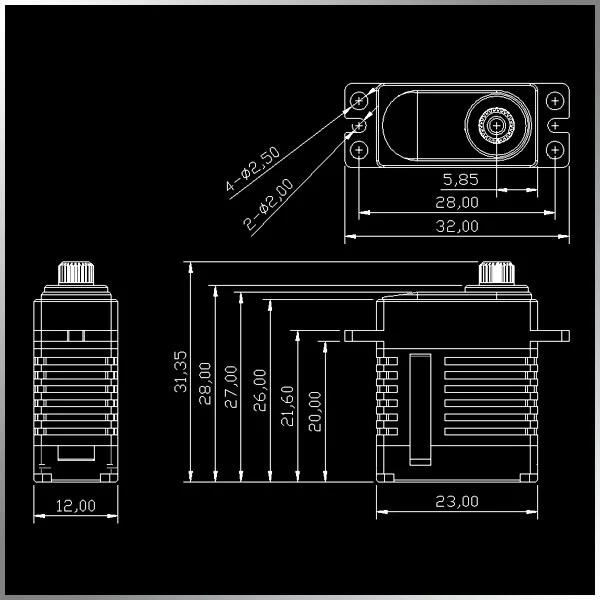

Dimensions: 23 mm x 12 mm x 27.5 mm / 0.91 x 0.47 x 1.07 in


$ 39.93 $ 39.93 $ 65.00
( $ 0.00/Units)
Contact Us
 See Terms and Conditions

The KM1203MD is a high-performance micro servo designed for demanding applications. It delivers fast response and an exceptionally high 10.5 kg·cm of torque for its size class.

During operation, this servo may produce noticeable noise. This behavior is typical for the KM1203MD and should be considered normal.

Like all servos offered by Turnabot, the KM1203MD is engineered for durability under normal operating conditions. Many lower-cost servos fail after only a few seconds of hard stalling and often burn out after a short period of light stalling. By comparison, the KM1203MD can tolerate limited stalling for extended durations, including full battery discharge cycles.

Important: Prolonged stalling will generate significant heat. While this servo is substantially more robust than lower-cost alternatives, it may become uncomfortably hot to the touch. To maximize service life and reduce unnecessary power consumption, stalling should be minimized whenever possible.
