KingMax C507 Servo

(0 review)


The C507 Micro Servo delivers impressive performance in an exceptionally small and lightweight package. Despite its compact 11 g weight, it offers fast response and strong torque, making it well suited for tight spaces and weight-restricted robot designs.



Speed

Torque

8.4 volts

0.06 sec / 60°

2.5 kg.cm (34.72 oz/in)

7.4 volts

0.07 sec / 60°

2.3 kg.cm (31.94 oz/in)

6.0 volts

0.08 sec / 60°

2.0 kg.cm (27.78 oz/in)

5.0 volts

0.10 sec / 60°

1.8 kg.cm (25.00 oz/in)

Specs:

Weight: 11 g

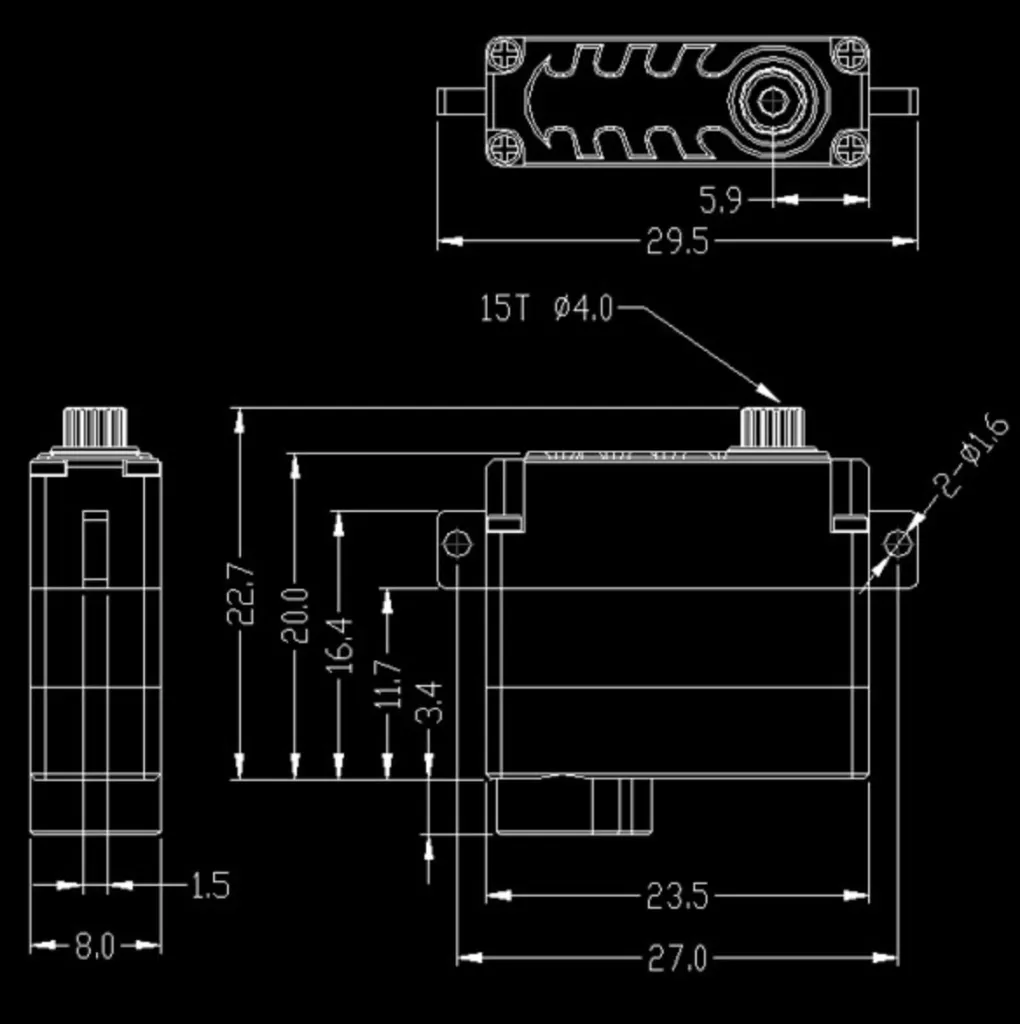

Dimensions: 23.5 mm x 8 mm x 20 mm


$ 44.97 $ 44.97 $ 59.00
( $ 0.00/Units)
Contact Us
 See Terms and Conditions

The C507 Micro Servo delivers impressive performance in an exceptionally small and lightweight package. Despite its compact 11 g weight, it offers fast response and strong torque, making it well suited for tight spaces and weight-restricted robot designs.

During operation, this servo may produce noticeable noise. This behavior is normal for the C507 and should not be interpreted as a defect.

Like all servos offered by Turnabot, the C507 is engineered for durability and is highly resistant to damage under normal operating conditions.


Durability Notes

Many lower-cost servos fail after only a few seconds of hard stalling and often burn out after a short period of light stalling. The C507 can tolerate limited stalling for extended durations, including full battery discharge cycles.

Important: Prolonged stalling will generate significant heat. While this servo is more tolerant of abuse than lower-cost alternatives, it may become uncomfortably hot to the touch. To maximize service life and reduce unnecessary power consumption, stalling should be minimized whenever possible.
