Turnabot Dual ESC

(0 review)


The Turnabot Dual ESC is a compact dual brushed electronic speed controller designed to bring near Malenki-Nano simplicity to almost any radio system. It offers an easy upgrade path for builders who want straightforward wiring, reliable performance, and broad receiver compatibility.

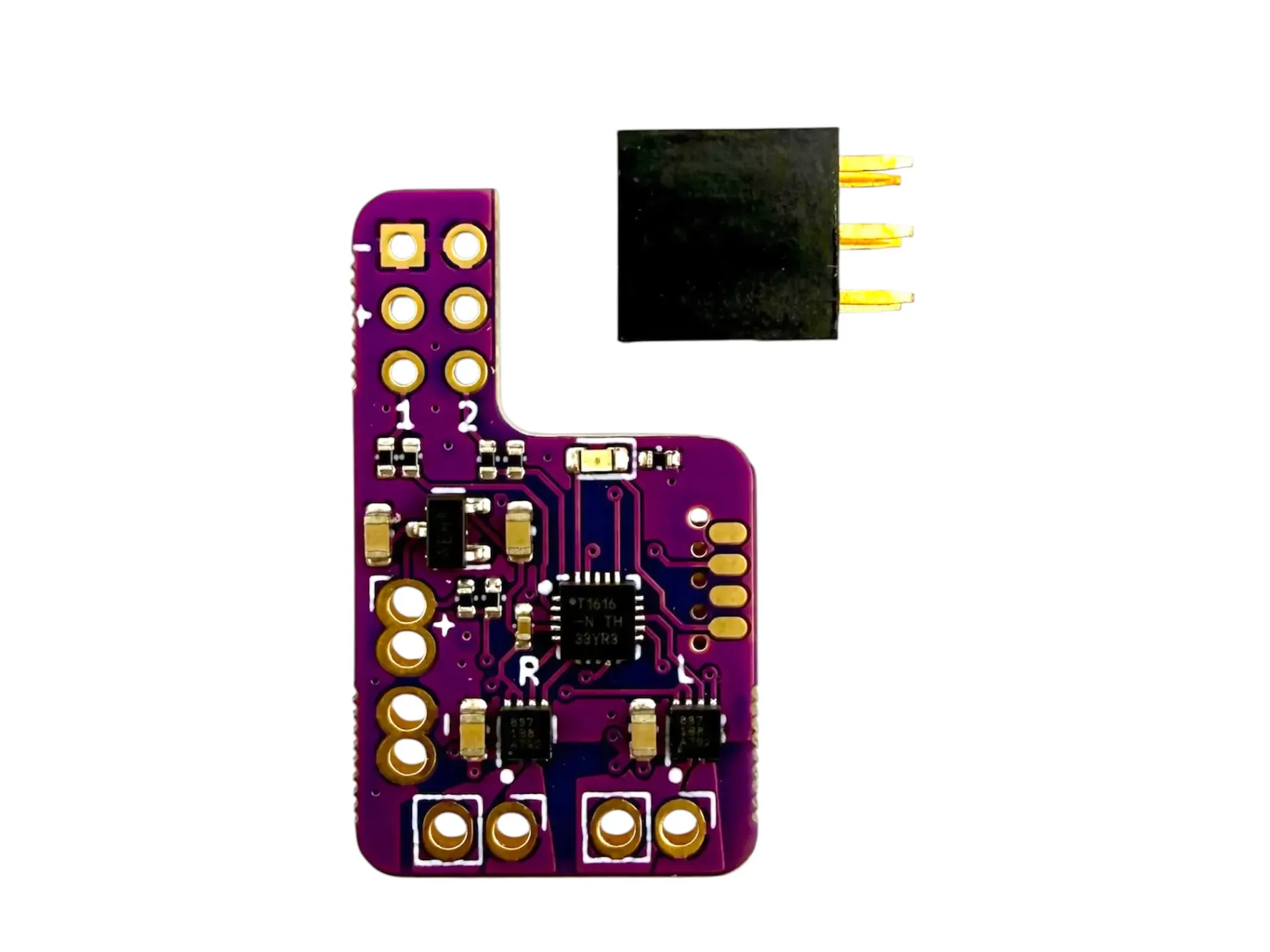

To simplify installation, the Turnabot Dual ESC is available with a 2 × 3 header pin configuration, allowing it to plug directly into or be easily removed from a wide range of standard receivers. This makes setup, troubleshooting, and replacement quick and accessible—especially useful for educational and modular robot builds.

Specs:

Weight: 1.35 g

Dimensions: 28 mm x 16.5 mm


$ 15.00 $ 15.00
( $ 0.00/Units)
Contact Us
 See Terms and Conditions
Power and PerformanceIdeal Applications


Power and Performance

The Turnabot Dual ESC features two brushed motor drivers, each officially rated at 1.8 amps per channel and supporting operating voltages of up to 12.0 volts.

While the official rating is conservative, the motor drivers have a wider real-world tolerance range of 1.9 to 3.5 amps. Testing has shown that most units typically operate in the 2.1–2.5 amp range at 8.0 volts, providing additional performance headroom during demanding operation.


Ideal Applications

The Turnabot Dual ESC is well suited for:

  • Small combat robots

  • Prototyping and experimentation

  • Builders seeking Malenki-style simplicity without a specific radio protocol requirement
